Lift trucks and maneuvering systems from mobac offer an agile and efficient solution for transporting and handling wire spools and cable drums. They are ideal for applications that require precise maneuvering and reliable handling.
Products
Lift Trucks and Maneuvering System
Lift Trucks and Maneuvering System

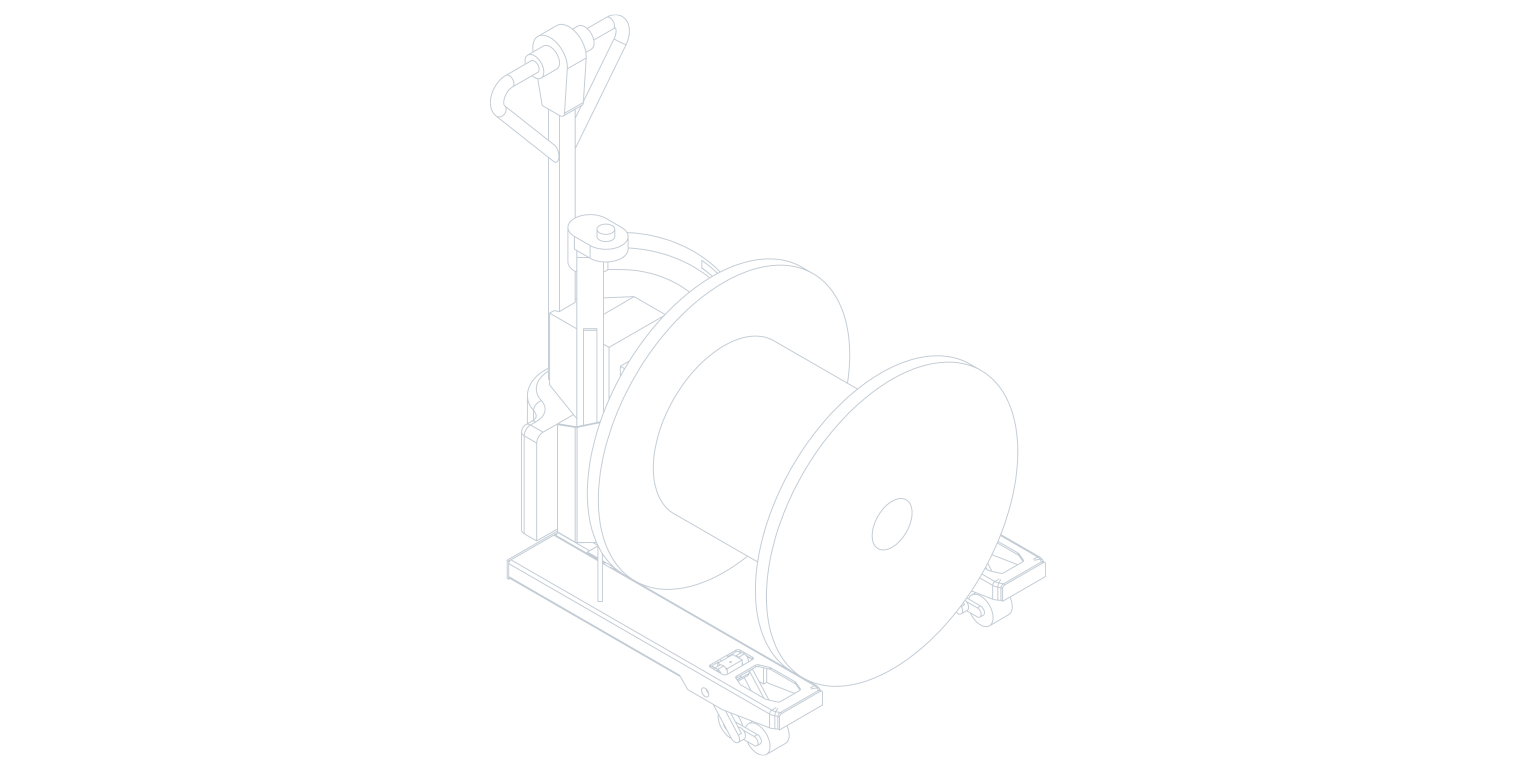

Lift trucks and maneuvering system offer practical support when transporting and positioning wire reels and cable drums. With their robust design and easy handling, reels can be picked up directly from the ground to place the reels on site. There are manually operated and electrically operated spool trucks.
Description
- Maneuverable spool trucks for transporting and handling wire spools and cable drums
- Lifting the coils directly from the floor
- Specially developed for steel and plastic spools in the wire and cable industry
- Supported flange diameters: up to 1000 mm
- Maximum lifting heights: up to 1600 mm depending on type
- Load capacities: up to 1000 kg depending on type
- Hydraulic lift actuation by foot or hand lever
- Adjustable support widths for different bobbin sizes
- Compact dimensions for easy maneuverability
- Small turning circles for use in confined spaces
- Robust construction for industrial use
- Optional weighing function for precise handling
- Electric spool truck with electric driving and lifting available
- Standard color RAL 7022 (grey), other colors on customer request
- Special versions available for specific coil dimensions
- Ergonomic design for comfortable operation
- Sturdy wheels for safe transportation
- Easy maintenance and durable components
- Suitable for use on various floor coverings
- Adaptable to customer-specific requirements
Optional
- Weighing function for precise weight control
- Special paint finishes according to customer requirements
- Special holders for different coil types
- Extended lifting heights or load capacities
- Accessories for specific applications
