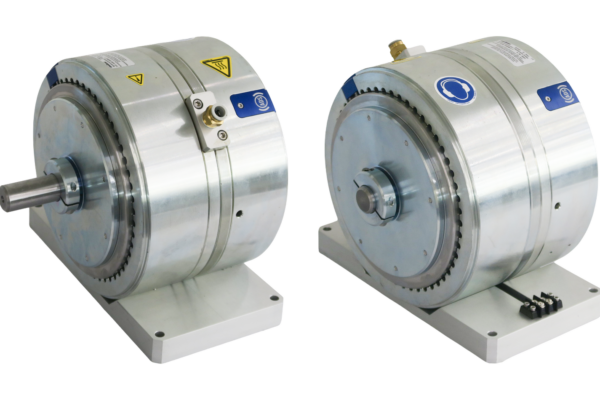

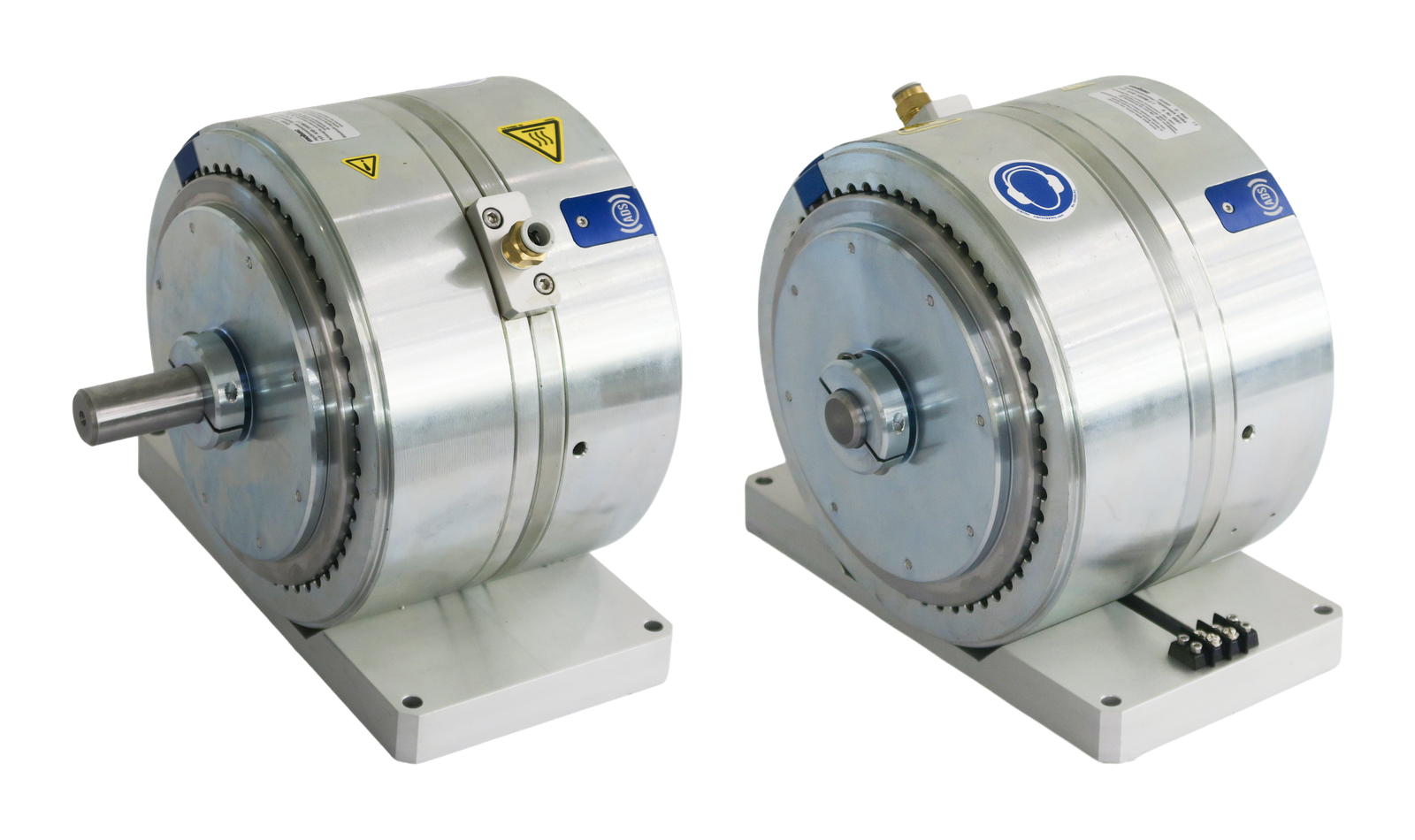

Air Cooled Hysteresis Brakes

The hysteresis brakes are designed for a temperature range of -30 to +85 °C.

• Precise torque control thanks to current-controlled hysteresis technology
• Torque range: up to 29.0 Nm
• Working current: up to 1,070 mA
• Maximum speed: up to 12,000 rpm
• Possible power loss with air cooling: up to 5,300 W
• Maximum air supply: 6.0 bar
• Available with single-sided or optional double-sided shaft
• Integrated temperature sensor with switching point at 80 °C
• Maintenance-free operation thanks to wear-free hysteresis technology
• Constant torque independent of the speed
• Simple integration into existing systems
• Different sizes for different applications
• High control accuracy and reproducibility
• Temperature resistance for use in different environments
• Low moment of inertia for dynamic applications
• Compatible with various control and regulation devices
• High reliability and durability
• Use in various industrial sectors such as mechanical engineering, automation and medical technology
• Extensive documentation and support available
• 3D models available in STEP format for design integration
• Customizable to specific customer requirements

Optional

• Various sizes and torque ranges
• Customizable shaft and flange configurations
• Special versions for high temperatures or special ambient conditions
